Surplus/Used Equipment

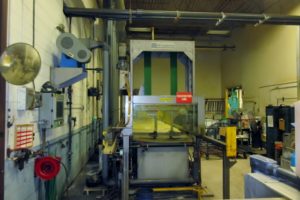

Used Passivation / Etch System

• Manufactured in 2012 by PKG Equipment Inc.
• Automatic hoist with Allen Bradley PLC controller
• 10 stations, 27” (DOT) x 35” x 30” deep, copolymer polypropylene
• 316 stainless steel dryer

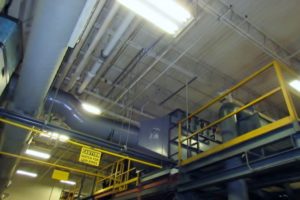

• Push/pull PVC ventilation system with (10) exhaust hoods, PVC scrubber, and PVC/FRP fan
• Process control panel (separate from hoist control)
• AC Power Requirements: 480V/3ph/60hz, (1) @ 30 amps, (1) @ 50 amps

Aldonex Solid State Rectifier

• #T-424-1.5CR-CCV
• Never used
• DC Output: 150 amps, 0-24 volts
• AC Input: 480 volts, 3 phase, 60 hz
• Air cooled
• SCR w/ independent current & voltage controls
• Constant current/voltage
• 5% ripple @ full output
• Automatic phase sequence indicator w/ voltage & phase loss cut-off

• Soft start is standard
• Main starter overloads
• Automatic current trip
• Thermal shut downs
• Rustproof plastic cabinet, blue/white, approx. 18″ H x 27″ W x 18″ D
• Fiberglass/polyester 12″ x 10″ x 5.5″ remote
• Analog DC ammeter & voltmeter in remote
• Approx shipping weight is 300 lbs

Hardwood Polypropylene Plating Barrel

•  Never used
• 18″ Ø x 36″
• 1/16″ perforations
• (2) covers

Aldonex SCR Controlled Rectifier

(2) Process Technology Metal Over the Side Heaters

• Model #F2217-PI
• 304 stainless steel
• 2 kW, 240 volts, 17″ long, 10″ hot zone
• Never Used
• $70.00 per heater

(2) Process Technology 2 inch Stainless Steel Screws Plug Heaters

(1) Process Technology Indicating Combination Control with 7′ Teflon Sleeve

• Model #C302
• 240 volts, 30 amps
• $80.00

(2) Reliance Motors
